Description

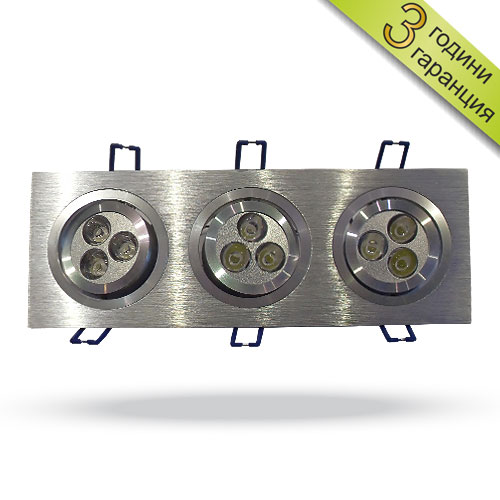

LED lamp for embedding with 9 pcs. LEDs, sizes: 252х90mm and montage hole 230mm.
*These dimensions are for the lighting body without including the driver.
- Code: 110103-1-1
- Manufacturer: DIANID
| Model | QTY of LEDs | Used LEDs | Power consumption | Voltage | Colors | Beam angle | Dimmable | Warranty |
| DQ9-01-12 | 9 | 1w 90-100LM | 9w | DC12V | CW, WW | 15, 30, 60, 120 ̊ | Yes* | 2 years |
| DQ9-01-220 | 9 | 1w 90-100LM | 9w | AC220V | CW, WW | 15, 30, 60, 120 ̊ | No | 2 years |
| DQ9-01-220-D | 9 | 1w 90-100LM | 9w | AC220V | CW, WW | 15, 30, 60, 120 ̊ | Yes** | 2 years |
| DQ9-02-12 | 9 | 1w 130-140LM | 9w | DC12V | CW, WW, R, G, B, Y | 15, 30, 60, 120 ̊ | Yes* | 3 years |
| DQ9-02-220 | 9 | 1w 130-140LM | 9w | AC220V | CW, WW, R, G, B, Y | 15, 30, 60, 120 ̊ | No | 3 years |
| DQ9-02-220-D | 9 | 1w 130-140LM | 9w | AC220V | CW, WW, R, G, B, Y | 15, 30, 60, 120 ̊ | Yes** | 3 years |
| DQ9-03-12 | 9 | 2w 180-200LM | 18w | DC12V | CW, WW, R, G, B, Y | 15, 30, 60, 120 ̊ | Yes* | 3 years |
| DQ9-03-220 | 9 | 2w 180-200LM | 18w | AC220V | CW, WW, R, G, B, Y | 15, 30, 60, 120 ̊ | No | 3 years |
| DQ9-03-220-D | 9 | 2w 180-200LM | 18w | AC220V | CW, WW, R, G, B, Y | 15, 30, 60, 120 ̊ | Yes** | 3 years |
* Dimmable with dimmers working at 12V
** Dimmable with rheostat dimmers working at 220V
The prices are without VAT
