WELLSTEP DIANID

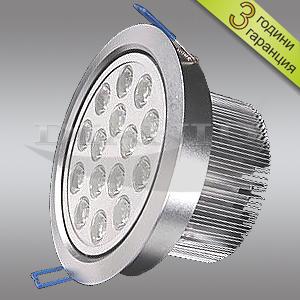

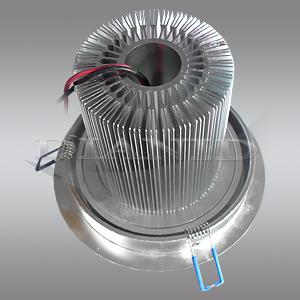

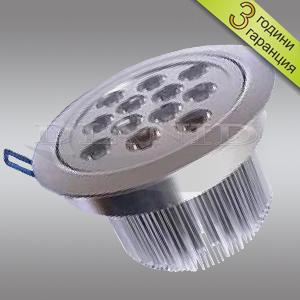

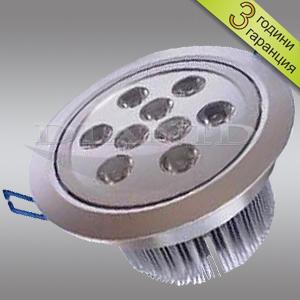

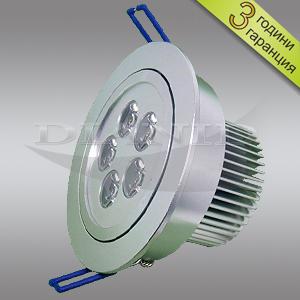

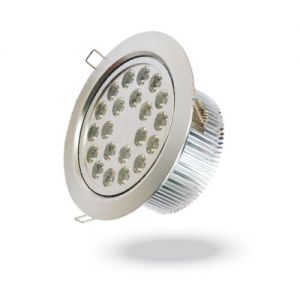

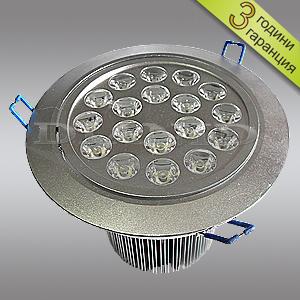

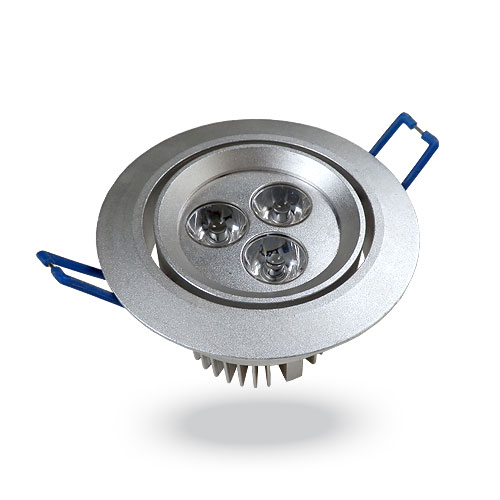

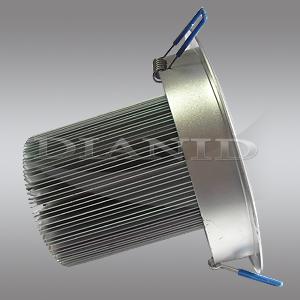

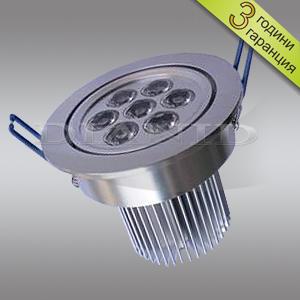

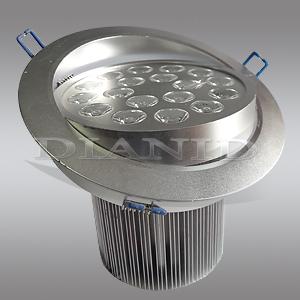

LED lamp from 3W to 21W with clips and ability to focuse lighting

Description

LED lamp with clips and ability to focuse lighting.

The mentioned sizes are only for the lighting body and there is not included the driver.

Code: 1101122
Manufacturer: DIANID

Send to friend Rate this product Add to wishlist

Мodel	QTY of LEDs	Voltage	Used LEDs	Color	Sizes	Beam angle	Warranty	Price
DN-03-01	3x1W	DC12V/ 24V	90-100lm/LED	CW/WW	d=85, h=45mm	30, 60, 120°	2 years
DN-03-02	3x1W	AC220-230V	90-100lm/LED	CW/WW	d=85, h=45mm	30, 60, 120°	2 years
DN-03-03	3x1W	DC12V/ 24V	130-140lm/LED	CW/WW/R/G/B/Y	d=85, h=45mm	30, 60, 120°	3 years
DN-03-04	3x1W	AC220-230V	130-140lm/LED	CW/WW/R/G/B/Y	d=85, h=45mm	30, 60, 120°	3 years
DN-05-01	5x1W	DC12V/ 24V	90-100lm/LED	CW/WW	d=105, h=65mm	30, 60, 120°	2 years
DN-05-02	5x1W	AC220-230V	90-100lm/LED	CW/WW	d=105, h=67mm	30, 60, 120°	2 years
DN-05-03	5x1W	DC12V/ 24V	130-140lm/LED	CW/WW/R/G/B/Y	d=105, h=67mm	30, 60, 120°	3 years
DN-05-04	5x1W	AC220-230V	130-140lm/LED	CW/WW/R/G/B/Y	d=140, h=65mm	30, 60, 120°	3 years
DN-07-01	7x1W	DC12V/ 24V	90-100lm/LED	CW/WW	d=105, h=67mm	30, 60, 120°	2 years
DN-07-02	7x1W	AC220-230V	90-100lm/LED	CW/WW	d=105, h=67mm	30, 60, 120°	2 years
DN-07-03	7x1W	DC12V/ 24V	130-140lm/LED	CW/WW/R/G/B/Y	d=105, h=67mm	30, 60, 120°	3 years
DN-07-04	7x1W	AC220-230V	130-140lm/LED	CW/WW/R/G/B/Y	d=105, h=67mm	30, 60, 120°	3 years
DN-09-01	9x1W	DC12V/ 24V	90-100lm/LED	CW/WW	d=140, h=65mm	30, 60, 120°	2 years
DN-09-02	9x1W	AC220-230V	90-100lm/LED	CW/WW	d=140, h=65mm	30, 60, 120°	2 years
DN-09-03	9x1W	DC12V/ 24V	130-140lm/LED	CW/WW/R/G/B/Y	d=140, h=65mm	30, 60, 120°	3 years
DN-09-04	9x1W	AC220-230V	130-140lm/LED	CW/WW/R/G/B/Y	d=140, h=65mm	30, 60, 120°	3 years
DN-12-01	12x1W	DC12V/ 24V	90-100lm/LED	CW/WW	d=140, h=66mm	30, 60, 120°	2 years
DN-12-02	12x1W	AC220-230V	90-100lm/LED	CW/WW	d=140, h=66mm	30, 60, 120°	2 years
DN-12-03	12x1W	DC12V/ 24V	130-140lm/LED	CW/WW/R/G/B/Y	d=140, h=66mm	30, 60, 120°	3 years
DN-12-04	12x1W	AC220-230V	130-140lm/LED	CW/WW/R/G/B/Y	d=140, h=66mm	30, 60, 120°	3 years
DN-15-01	15x1W	DC12V/ 24V	90-100lm/LED	CW/WW	d=160, h=130mm	30, 60, 120°	2 years
DN-15-02	15x1W	AC220-230V	90-100lm/LED	CW/WW	d=160, h=130mm	30, 60, 120°	2 years
DN-15-03	15x1W	DC12V/ 24V	130-140lm/LED	CW/WW/R/G/B/Y	d=160, h=130mm	30, 60, 120°	3 years
DN-15-04	15x1W	AC220-230V	130-140lm/LED	CW/WW/R/G/B/Y	d=160, h=130mm	30, 60, 120°	3 years
DN-18-01	18x1W	DC12V/ 24V	90-100lm/LED	CW/WW	d=160, h=130mm	30, 60, 120°	2 years
DN-18-02	18x1W	AC220-230V	90-100lm/LED	CW/WW	d=160, h=130mm	30, 60, 120°	2 years
DN-18-03	18x1W	DC12V/ 24V	130-140lm/LED	CW/WW/R/G/B/Y	d=160, h=130mm	30, 60, 120°	3 years
DN-18-04	18x1W	AC220-230V	130-140lm/LED	CW/WW/R/G/B/Y	d=160, h=130mm	30, 60, 120°	3 years
DN-21-01	21x1W	DC12V/ 24V	90-100lm/LED	CW/WW	d=180, h=72mm	30, 60, 120°	2 years
DN-21-02	21x1W	AC220-230V	90-100lm/LED	CW/WW	d=180, h=72mm	30, 60, 120°	2 years
DN-21-03	21x1W	DC12V/ 24V	130-140lm/LED	CW/WW/R/G/B/Y	d=180, h=72mm	30, 60, 120°	3 years
DN-21-01	21x1W	AC220-230V	130-140lm/LED	CW/WW/R/G/B/Y	d=180, h=72mm	30, 60, 120°	3 years
